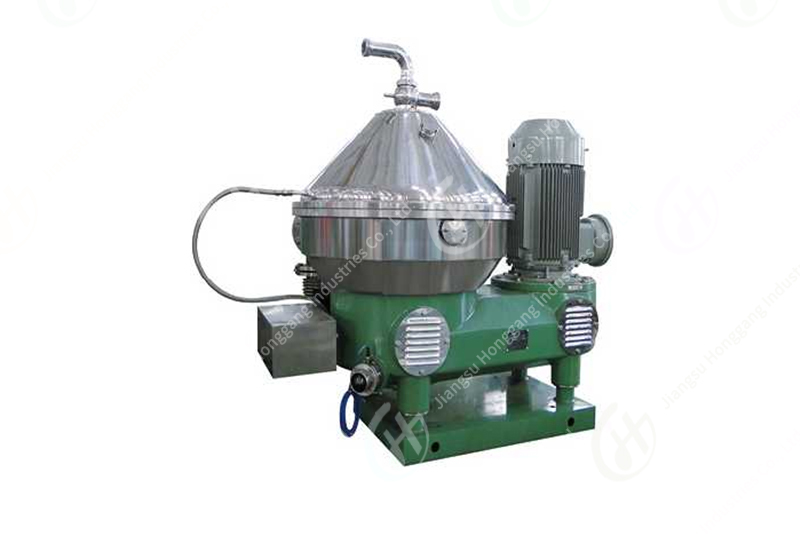

Chemical Separator
It is a big challenge for the separator in chemical industry since the separator will faced with a great test because of strong acid, strong alkali, high temperature, flammable and strong abrasion. Honggang senior technical personnel overcome every difficulties and search different solution for each equipment according to the product’ s special characteristics. Each perfect program will ensure the optimal of separation effective, safety and simple operation as well as lowest cost.
Details
It is a big challenge for the separator in chemical industry since the separator will faced with a great test because of strong acid, strong alkali, high temperature, flammable and strong abrasion. Honggang senior technical personnel overcome every difficulties and search different solution for each equipment according to the product’ s special characteristics. Each perfect program will ensure the optimal of separation effective, safety and simple operation as well as lowest cost.
Successful Applications:
Lubricating oil additives, glue liquid,PVC,cellulose and derivatives, inks and dyes phosphoric acid, herbicides, latex (synthetic), boiler ask,catalyst etc...
Application site in the viscose industry |
Technical Data:
Model | Treatment Capacity (L/H) | Inlet Pressure (MPa) | Outlet Pressure (MPa) | Motor Power (Kw) | Weight (Kg) | Outline Dimension (mm) |
DHNJ360 | 1500-3000 | 0.1 | ≤0.3 | 7.5 | 1200 | 1530×1150×1500 |
DHNJ211 | 3000-7000 | 0.2 | ≤0.4 | 15 | 1600 | 1800×1200×1750 |
DHNJ614 | 6000-13000 | 0.2 | ≤0.4 | 30 | 2350 | 2050×1610×1860 |
